Program and File Management

File transfer

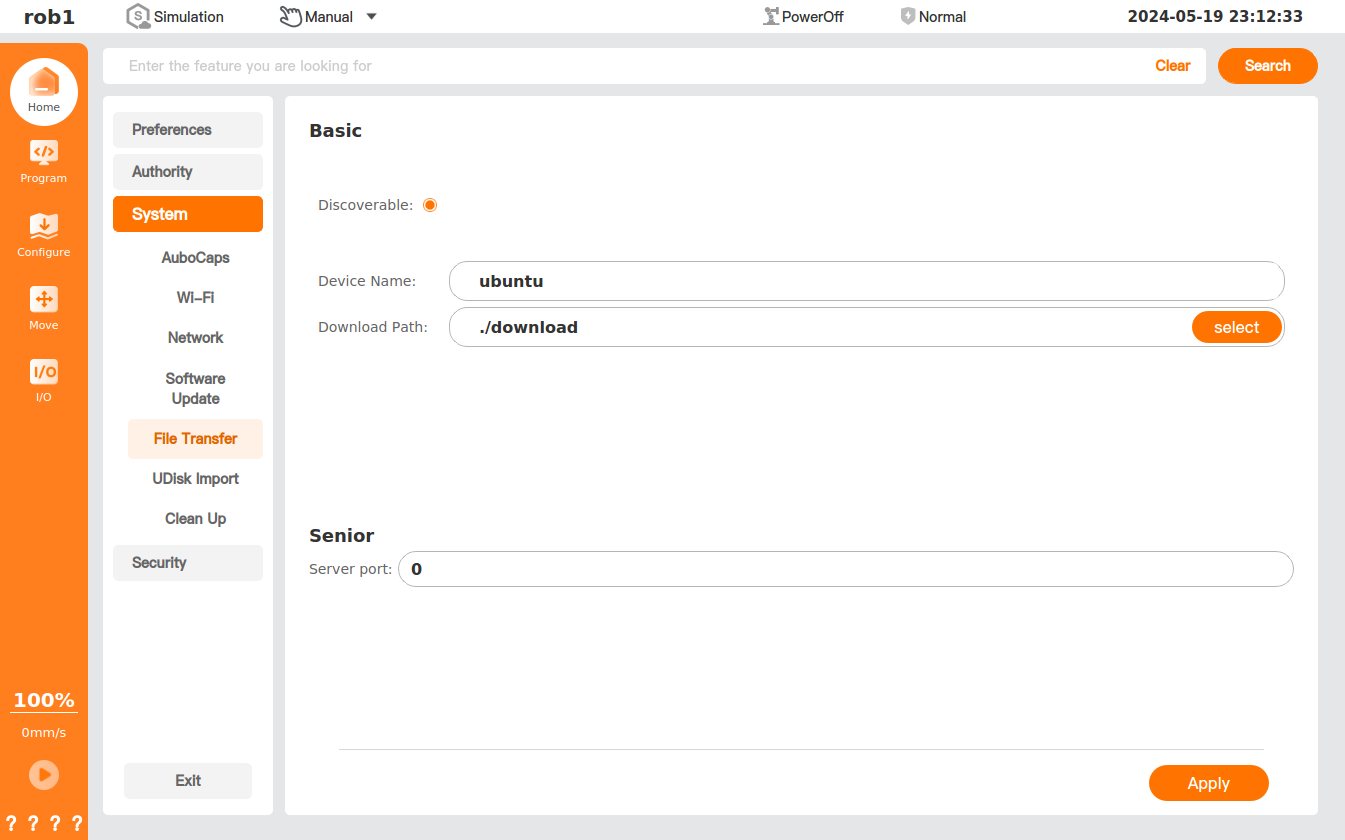

On the [File Transfer] page, you can configure the device name and download path so that the system can transfer files between different devices within the same LAN.

Before using this function， please turn on the [Network] function.

• Discoverable: Set whether this device can be discovered by other devices.
• Device Name: Set the device name for this system.
• Download Path: Set the download path for importing external device files into this system.
• Server port: Set the server port.
• Apply: Click to apply the settings.

UDisk import

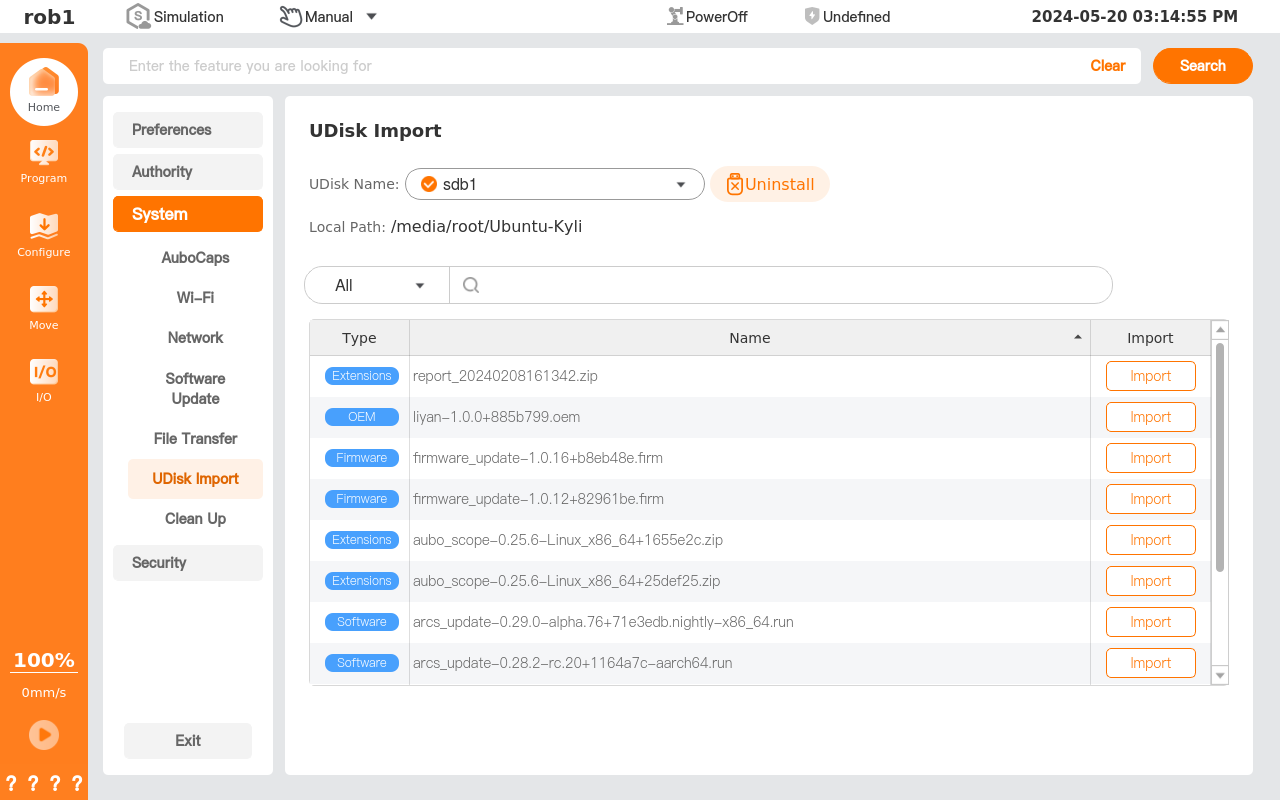

On the [UDisk Import] page, users can import files into the system via a USB storage device. The system downloads the files to the corresponding directory according to the imported files. For example, a software package is imported into the software package directory of the system, and users can view the imported software package in the installation package list in "Setting > System > Software Update."

• Uninstall/Mount: Mount and uninstall the U disk. After the U disk is inserted into the controller and recognized, you need to click [Mount] to operate on the files in the U disk. Before unplugging the U disk, you need to click [Uninstall] to safely unplug the U disk to avoid damaging the data by forcibly pulling the U disk.

  The U disk cannot be uninstalled when it is in use.

• [All] dropdown box: Filter the files on the U disk according to the file type.

• Search: Search for files on the U disk.

• Import: Import the files of the U disk into the controller.

UDisk import

1. After the U disk is inserted into the controller, the system automatically recognizes the U disk. Select a USB device from the drop-down menu on the [UDisk Import] page, and the software package, installation configuration, and other files under the root directory of the U disk are displayed.

2. Click [Mount]. When the U disk is marked as , it indicates that the U disk is mounted.

3. Click [Import] corresponding to the file in the list to import the file into the controller.

4. Perform specific operations under the function corresponding to the imported file type.

   • In the [Program] page, users can click [Open] to display the imported project file.
   • In the [Configure] page, users can click [Open] to display the imported installation profile.
   • On the "Home > Setting > System > Software Update" page, the imported installation packages are displayed.
   • ……

5. After the file transfer is completed, please click [Uninstall] to uninstall the U disk and then pull it out.
