Home Interface Description

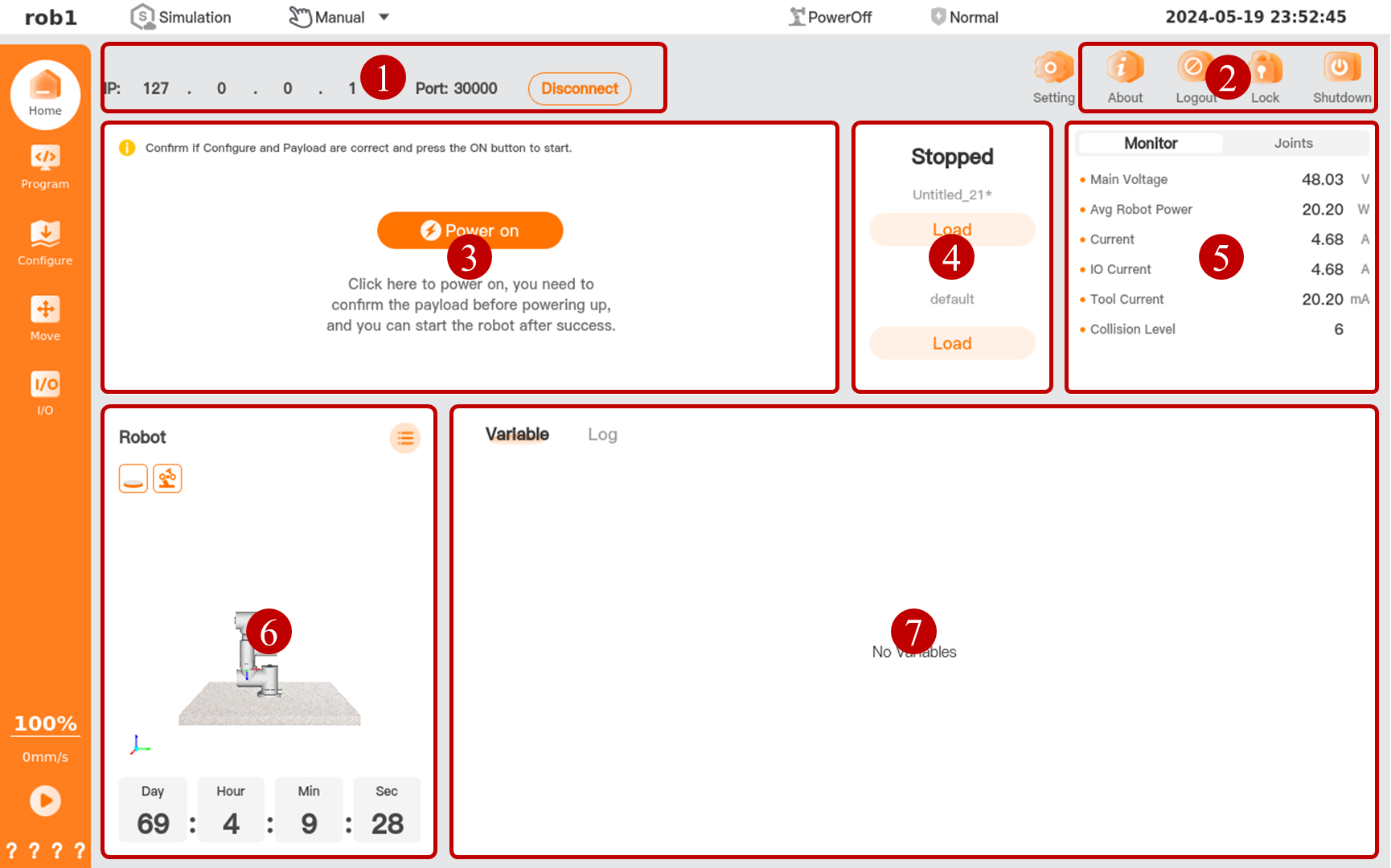

In page [Home], you can quickly start and operate the robot. The page Home consists of 7 functional areas:
Robot Connection Description
| Serial number | Name | Description |
|---|---|---|
| 1 | Robot connection | Display and switch the robot's connection. Note: When the robot arm usage exceeds the warranty period, users will be reminded [Robot arm warranty has expired]. |
| 2 | System control buttons | Other settings and information. |
| 3 | Robot status | Set and display the robot status. |
| 4 | Profiles and programs | Load the running programs and installation profiles of the robot. |
| 5 | Monitor and joint | Display the status of the controller and the robot's joints. |
| 6 | Robot | Display the age and simulation model of the robot, and view robot version information. |
| 7 | Variables and log | Variables: display the variable value of the running program. Log: Display Controller System Log. For more information about logs, please refer to Log - View Log and Runtime Records. |
